Product Details
＋

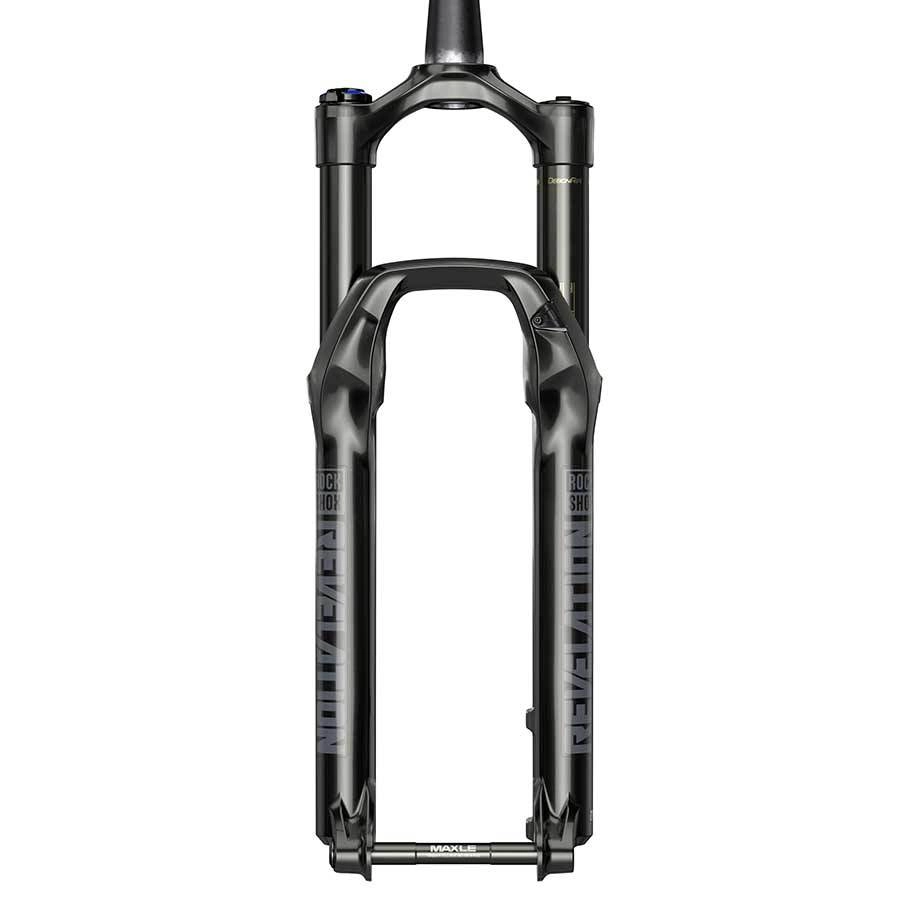

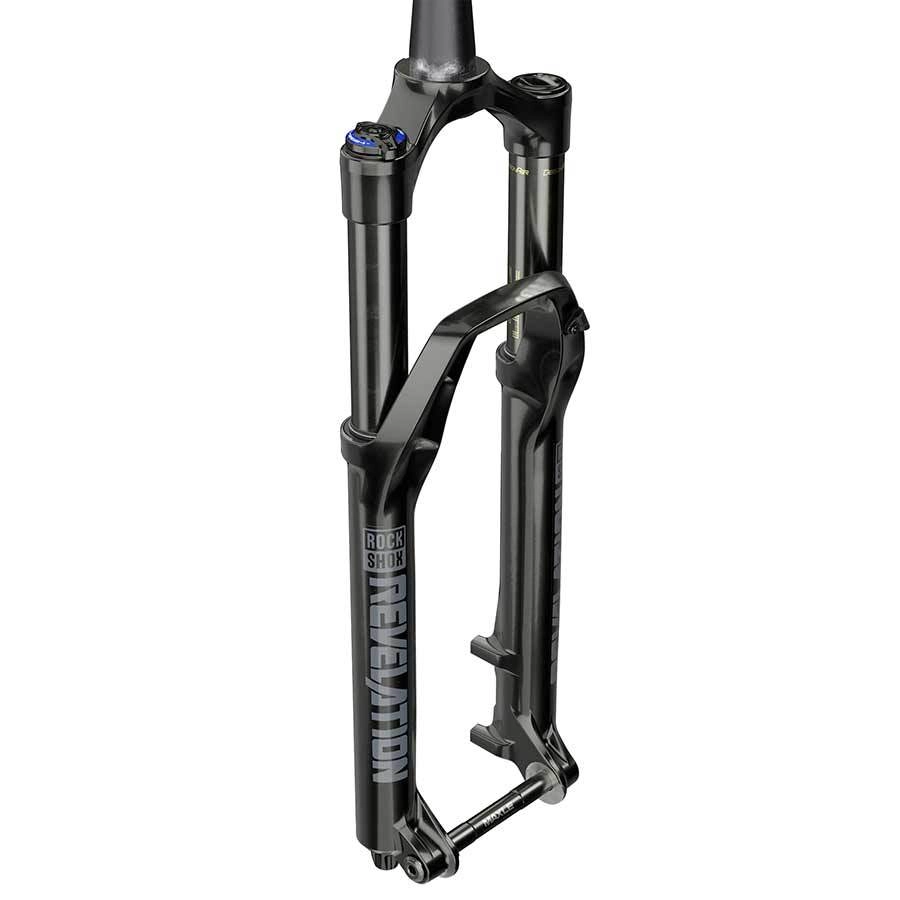

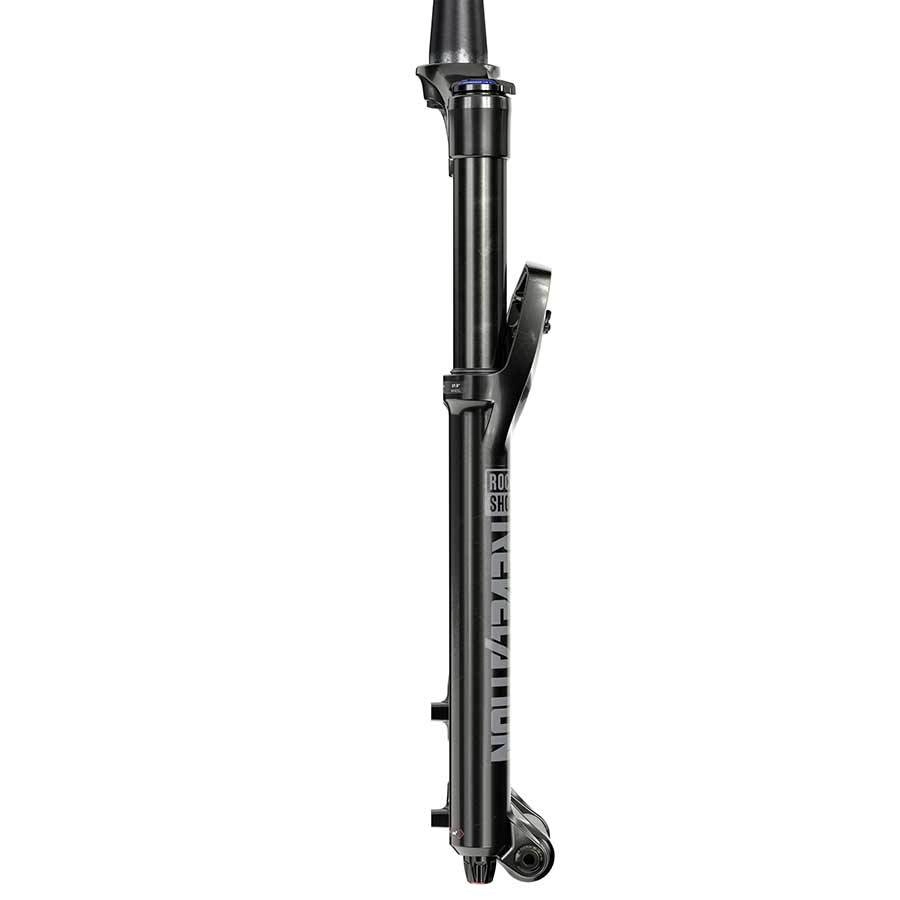

Beefed up to the same 35-millimeter chassis as Pike; Revelation offers the handling characteristics of the modern trail and all-mountain rider demands at a fantastic value.
FEATURES
SPECS
FEATURES
- Large DebonAir negative spring provides small-bump sensitivity and mid-stroke support
- The fast black coating on the upper tubes provides improved durability and decreased friction
- Tool-free Maxle Light 15x110 thru-axle
- 2-Position Crown Compression Adjustment (Open/Lock); Externally adjustable rebound
SPECS
- Positive Spring: Air
- Wheel Size: 29"
- Brake Type: Post Mount 180
- Crown Race: 40
- External Adjustments: Low-speed compression damping, rebound damping
- Negative Spring: Air
- Stanchion Diameter: 35
- Steerer Type: Tapered
- Maximum Tire Width: 81
- Offset: 42mm
- Color: Gloss Black
- Steerer Tube Length: 245mm
- Front Axle: 15mm Thru x 110mm
- S.H.I.S. Stem Clamp Diameter: 28.6mm
- Travel: 120mm
- Axle to Crown Length: 531
- Lockout Switch: Crown
- Weight: 1895g
